4-72 C型离心风机

防腐耐磨 风力强劲 高效排风

Anti-corrosion and wear-resistant, strong wind, efficient exhaust

加厚碳钢外壳

激光切割精准成型，表面光滑平整，外形美观，防腐耐磨

Laser cutting precision shaping, smooth and flat surface, beautiful appearance, anti-corrosion and wear-resistant

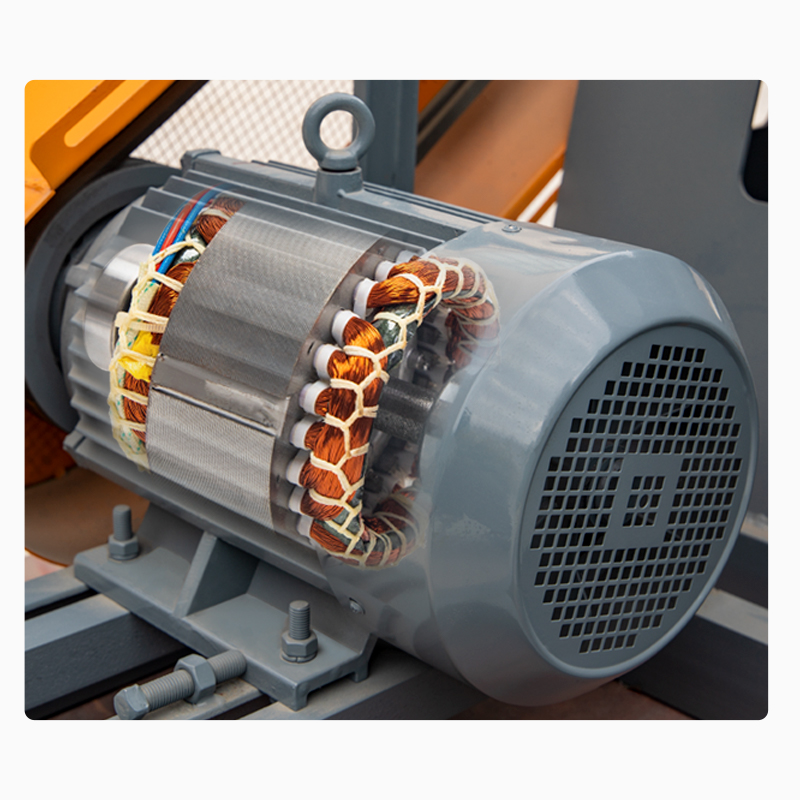

全铜电机

国标全铜电机，具有效率高、发热少不易烧毁等特点

The national standard copper motor has the characteristics of high efficiency, less heat and not easy to burn.

清渣口

打开清渣口，可清理叶轮处的残渣，便于叶轮的清理于维护

Open the cleaning port to clean up the residue at the impeller, which is convenient for cleaning and maintenance of the impeller

皮带传动

两根皮带带动电机运转，降低工作噪音，安装维护更方便

Two belts drive the motor to run, reduce working noise, and make installation and maintenance more convenient

外观解析

连体结构，皮带传动连接电机，方便后期维护；碳钢外壳，牢固耐用

One-piece structure, belt drive connected to the motor, convenient for later maintenance; carbon steel shell, firm and durable

使用场景

广泛应用于锅炉厂、发电厂、造纸厂、炼钢厂等场合

Widely used in boiler plants, power plants, paper mills, steel mills, etc.

4-72C型皮带式传动系列离心通风机广泛应用于工厂矿业、宾馆酒店等大型建筑的室内通风换气、降温除尘等用途，也可以用于输送物料、空气及无腐蚀性不自燃、不含粘性物质的气体。

产品细节

旋压进风口，风量风压达标；后倾式叶轮、皮带传动、导轨设计,运行稳健
Spinning air inlet, air volume and pressure up to standard; backward-inclined impeller, belt drive, guide rail design, stable operation

角度示意图

出厂默认为左旋90°，如需其他角度请联系客服定做

The factory default is 90° left-handed, if you need other angles, please contact customer service for customization

出厂角度一般为左旋90°，如需要其他角度请联系客服定做。

技术安装参数

4-72C型离心风机 ·型号选择

Model selection

尺寸示意图

4-72C型离心风机部分型号尺寸参考如下，单位为毫米

The dimensions of some models of 4-72C centrifugal fans are as follows, the unit is mm
